Inductive proximity sensor
Switching element function NAMUR NC

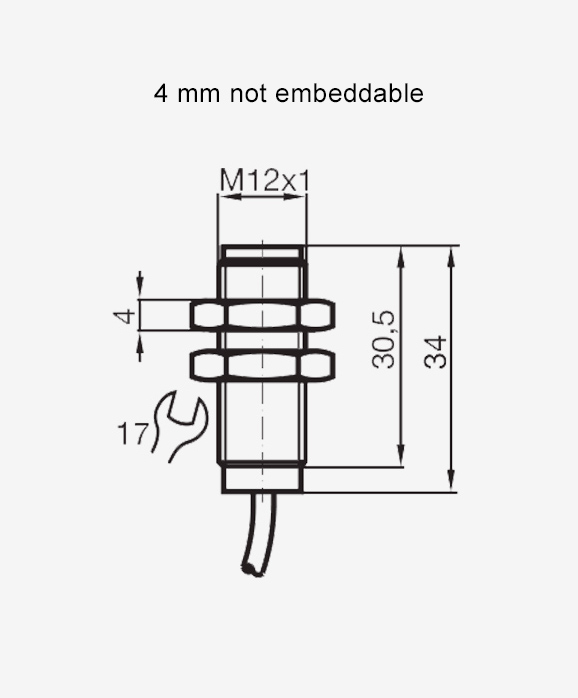

Installation not embeddable
Rated operating distance sn 4 mm
Assured operating distance sa 0 ... 3.24 mm
     Reduction factor rV2A 0.85
     Reduction factor rAl 0.4
     Reduction factor rCu 0.3
Nominal voltage Uo 8 V
Current consumption
     Measuring plate detected ≤ 1 mA
     Measuring plate not detected mA
Switching frequency f 0 ... 1500 Hz
Ambient temperature -25 ... 100 °C (248 ... 373 K)
EMC in accordance with EN 60947-5-2
Protection degree IP68
Connection type 2 m, PVC-cable
Core cross-section 0.34 mm²
Housing material PBT
Sensing face PBT
Standard conformity DIN EN 60947-5-6 (NAMUR)
     Effective internal capacityCi Ci ≤ 60 nF
     Effective internal inductivityLi Li ≤ 29 µH
Connection wiring
