- Bộ đo chênh áp Model DPA
- Giá:Liên hệ
- Xuất xứ:Finland
- Lượt xem:2074
Overview

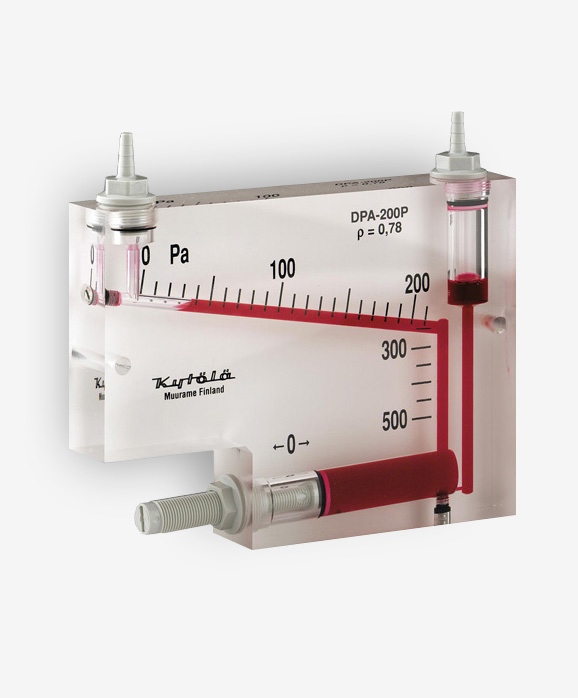

Model DPA inclined tube manometer is intended for use in applications where measurement of low pressure and differential pressure is needed or in monitoring applications where clear and reliable reading must be made from a distance.
Its design makes the instrument ideal for applications involving occasional differential pressures exceeding the measuring range. Typical applications are air conditioning strainers, blowers, dust filters, pressurized enclosures and draught measurement in furnaces.
| Technical data | |
| Metering liquid | Red, hydrocarbon mixture, ρ="0.78" |
| Weight (incl. liquid) | 500 g |
| Body | Acrylic (PMMA) |
| Connectors | Polycarbonate (PC) |
| Seals | Nitrile |
| Max. overload | 5 — 30 x measuring range (depends on the way of mounting) |
| Max. static pressure | 10 bar |
| Ambient temperature | -40 ... +50°C |
| Accuracy | ±5% F.S. of inclined range |
| Connections | For 4-6 mm hose (inside diameter) |
