- Bộ ổn định lưu lượng Model 3630
- Giá:Liên hệ
- Xuất xứ:Finland
- Lượt xem:2370

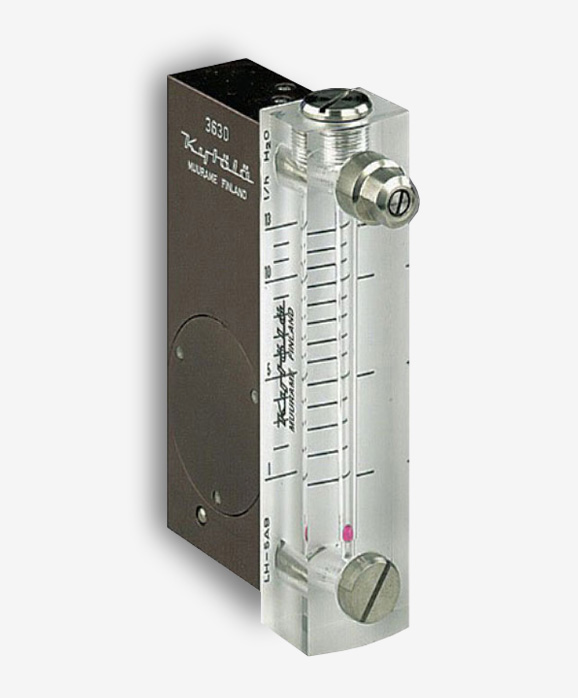

Model 3630
Model 3630 constant flow regulator comes with a choice of an AISI 316 stainless steel or aluminum body. It is a sturdy, industrial constant flow regulator.
It is designed to provide a constant flow of liquids in applications where supply or backpressure varies and to provide a constant flow of gases in applications where backpressure varies. It is a membrane type differential pressure controller and is supplied with Model L variable area flow meter for flow rate indication and setting.
Typical applications are water purging for instruments, gas purging in Δp measurements and hydrostatic density measurements.
| Technical Data | ||||||||
| Max. flow | 1,5 l/min H2O (60 Nl/min air at 6 barg) | |||||||
| Max. diff. pressure | 10 bar | |||||||
| Max. static pressure | 20 bar | |||||||
| Pressure drop at nominal flow | 2 bar | |||||||
| Max. temperature | 75°C (*80°C) | |||||||
| Body | Aluminium or AISI 316 | |||||||
| Spring | AISI 316 | |||||||
| Membrane | EPDM | |||||||
| Plate | Nylon (PA 6) (*PVDF) | |||||||
| Seals | Nitrile (*Viton, EPDM) | |||||||
| Mesh | PTFE | |||||||
| Connections | BSP 1/4" or NPT 1/4" | |||||||
| Weight | 500 g (Aluminium body) tai 1100 g (AISI 316 body) | |||||||
| Installation position | Vertically | |||||||
| *) Special construction on request | ||||||||
