SẢN PHẨM
- ĐỒNG HỒ ĐO LƯU LƯỢNG
- Giá:Liên hệ
- Xuất xứ:Finland
- Lượt xem:95005
Overview

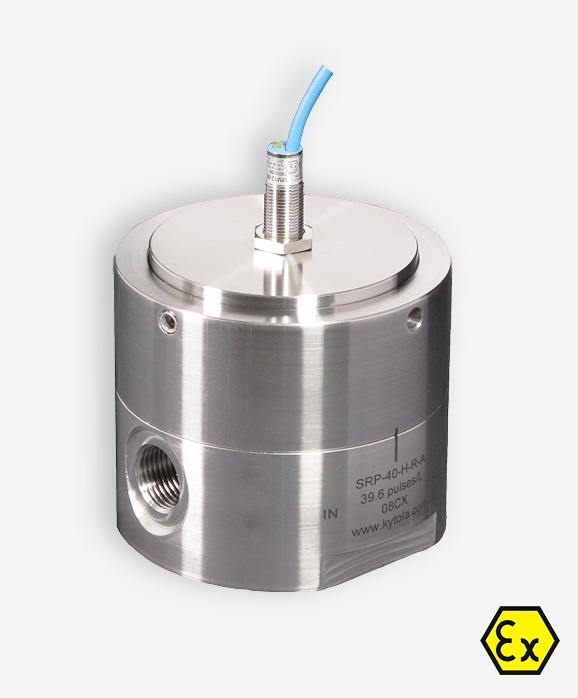

The KYTOLA® Model SRP Stainless Steel Oval Gear Flow Meter is specifically designed for the accurate flow measurement and monitoring of liquids in demanding industrial environments.
The flow meter consists of two elliptical gears that are rotated by the flow. The rotation speed is proportional to the flow rate. This rotation is picked up by a magnetic proximity sensor, and the pulse signal can be transferred to indicators, counters, or automation systems.
| Technical Data | |||
| Model | SRP-6 | SRP-40 | SRP-150 |
| Body | Stainless steel AISI 316 | ||
| Gears | Stainless steel AISI 316L or brass depending on model | ||
| Bearings | Ceramic plain bearings on stainless steel gears | ||
| Seals | Viton® | ||
| Sensor | Magnetic sensor according to Namur, DIN 19234, or magnetic sensor 10 - 30 VDC, PNP, NO, 3-wire |
||
| Accuracy | ±0.5% of reading, viscosity ≥50 cSt | ||
| Max. temperature; fluid and ambient |
+75ºC with Namur sensor, 100°C with PNP sensor | ||
| Maximum pressure | 600 bar | 300 bar | 200 bar |
| Connections (BSP/NPT) | 1/4" | 1/2" | 1" |
| Weight | 1 kg | 5 kg | 22 kg |
