SẢN PHẨM
- ĐỒNG HỒ ĐO LƯU LƯỢNG CHẤT LỎNG VÀ KHÍ
- Giá:Liên hệ
- Xuất xứ:
- Lượt xem:4683
Overview

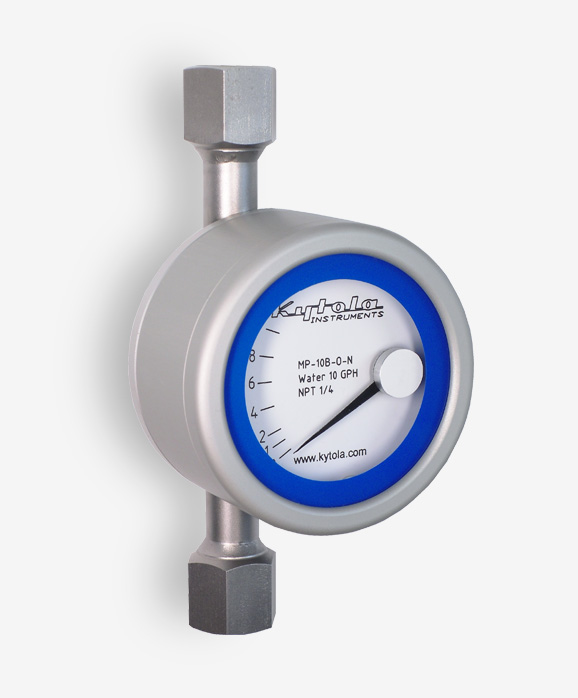

Metal Tube flow meter model MP is a compact flow meter with AISI 316L stainless steel parts. It is designed to withstand high pressure, temperature and aggressive media. It is compatible for a wide range of liquids or gases. Its reliable and accurate flow measurement is based on a variable area metering principle using a free-floating float. Typical applications are chemical and petrochemical industries, power plants and general flow measurements.
| Technical data | |
| Flow tube | Stainless Steel AISI 316L |
| Connectors | Stainless Steel AISI 316L |
| Float | Stainless Steel AISI 316L |
| Display housing | Aluminium (*Stainless Steel AISI 316L) |
| Housing window | Polycarbonate (*Borosilicate glass) |
| Seals | Viton® (*EPDM) |
| Maximum pressure | 100 bar |
| Maximum temperature | +100°C with alarms / +150°C without alarms |
| Connections | BSP / NPT / BSPT 1/4" or 1/2" (depending on range) |
| Weight | 920g |
| *) Special construction on request | |
