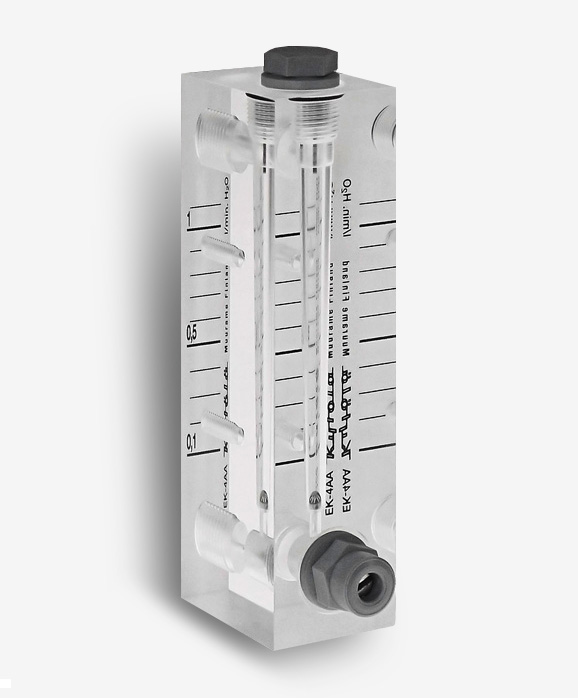

Lưu lượng kế dạng phao, Model E
Giải đo (min./max.):
Nước: 0.002 / 2.5 L/min
Khí: 0.1 / 90 NL/min at +20C / 101,3 kPa
Overview
Variable area flow meter Model E is a high quality acrylic flow meter. It is a reliable and easy to read instrument for measuring and monitoring liquid and gas flows. It is available in single tube and multi-tube versions with many options. Model E is equipped with a flow adjustment valve and is also available in customized designs. Typical applications are water and air purging, shield gas measurements and other gas and liquid measurements.
Technical Data | ||
Model | EK- | EH- |
Weight | 170 g | 200 g |
Valve housing/plugs | Nylon | AISI 316 |
Valve spindle | AISI 316 | AISI 316 |
Body | Acrylic (PMMA) | Acrylic (PMMA) |
Seals | Nitrile (*Viton®, EPDM) | Nitrile (*Viton®, EPDM) |
Max. pressure | 20 bar (30 bar/30°C) | 20 bar (30 bar/30°C) |
Max. temperature | 75°C | 75°C |
Connections | BSP 1/4" | BSP 1/4" |
Accuracy | ± 5% F.S. (H2O, +20°C) | ± 5% F.S. (H2O, +20°C) |
*Alarm sensor
(Fixed low and/or high flow alarm.
Available only for flow ranges 2M, 2N, 3M, 3N, 4A, 5E, 5S and 5F) |
ILK-M18-AB (20 - 250 VAC/DC, 2-wire, NO) ILK-M18-FR (10 - 55 VDC, 2-wire, NO/NC) ILK-M18-N (Namur, DIN 19234) |
|
*) Special construction on request |
