Flow rate (min./max.):
Water: 75 / 1000 L/min
Overview

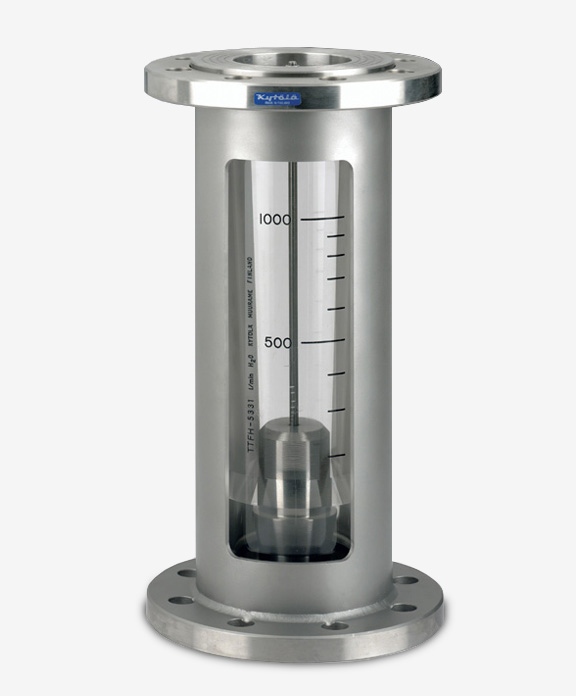

Variable area flow meter Model TT is a sturdy industrial flow meter. It has a stainless steel AISI 316 body with an acrylic flow tube. It is a reliable instrument for measuring and monitoring large water flows. Typical applications are water treatment, power plants and swimming pools.
Technical Data | |
Connections | DN 80 |
Max. pressure | 16 bar |
Max. temperature | 75°C |
Weight | 17,5 kg |
Body | AISI 316 |
Float | AISI 329 |
Flowtube | Acrylic |
Seals | Nitrile (* Viton®, EPDM) |
Accuracy | ± 5 % F.S. |
*) Special construction on request |
